Stair Wheelchair Lift for Home Disabled People with CE
Application:
The Stair Wheelchair Lift for Home Disabled People adopts new material-aluminium Alloy, which made
the lift to be light weight, more durable and easy installation. It can easily lift the person and wheelchair with
the capacity 250kg or more you need.
Model List:
| Model | Lifting height | Load capacity | Platform size | Self weight | Manual Door |
| SJG0.25-1 | 1000mm | 250kg | 1430*900mm | 350kg | Yes |
| SJG0.25-2 | 2000mm | 250kg | 1430*900mm | 550kg | Yes |
| SJG0.25-3 | 3000mm | 250kg | 1430*900mm | 780kg | Yes |
| SJG0.25-4 | 4000mm | 250kg | 1430*900mm | 880kg | Yes |
| SJG0.25-5 | 5000mm | 250kg | 1430*900mm | 1000kg | Yes |
| SJG0.25-6 | 6000MM | 250kg | 1430*900mm | 1100kg | Yes |
Disabled lift Parts:
1. Column button: It is fixed on the ground and upper floor for the user easy operation with “UP”, “Down” and E-Stop button.
2. Drive tower: The platform will go up by climing the drive tower, it contains pump station, hydraulic cylinder.
3. Control Panel: Apart from “UP”, “Down” and E-Stop button on it, there is still with keys, when no use,
we can lock the lift.
4. Handrail: When the users enter into the platform, they can hold on it for safety when lifting up and down.
5. Automatic ramp: When the platform off the ground, it will fold up automatically to ensure the users safety.

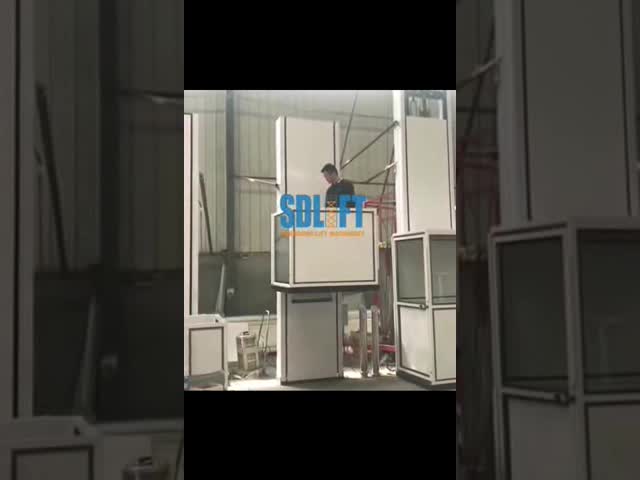

Product pictures:
The lift drawing:
The Certificate:
Our services:
1) We can design the Outdoor Hydraulic Vertical Wheelchair Platform Lift Elevator as per your requirement.
2) The Vertical Wheelchair Platform Lift Elevator will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
